Single Point Adjustable “T” Handle Locks

33 12002 33 31603 Picture Folding “T” Handle With 5/16″ Shaft Only
33 77704 Picture Eberhard Style 3PT Stainless Steel Folding “T” Handles

See table below for details.

SKU: 33-60002, 33-04804, 33-08802, 33-91104, 33-25004, 66-80506, 33-06003, 34-01102, 33-04602, 33-05504, 33-05602, 33-33303, 66-33306, 33-70102, 33-70202, 33-70302, 33-70402, 33-70502, 33-70602, 33-70702, 33-70802, 33-70902, 33-71002, 33-70602 Categories: ,

Description

Product #Orientation:Material:Lock:Description:Technical Drawing:
33-60002Right Hand Zinc Plated Non-LockingRecessed "T' Handle
33-04804Right Hand
Stainless Steel Locking With Dust Cap and 4 Mounting Holes

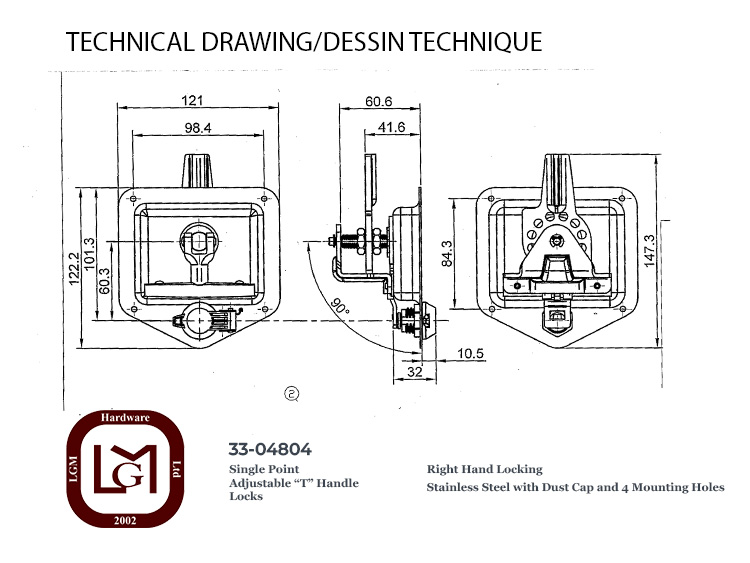

33 04804 Technical Drawing
Click photo to make Larger.

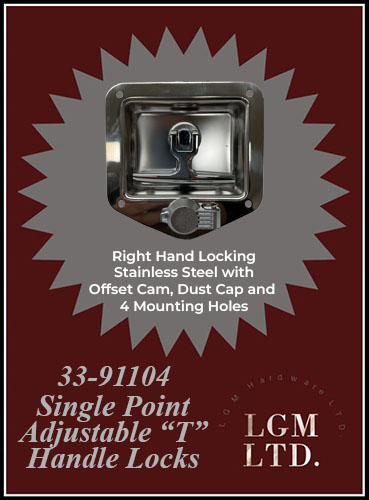

33-91104Right Hand
Stainless Steel Locking With Offset Cam, Dust Cap and 4 Mounting Holes

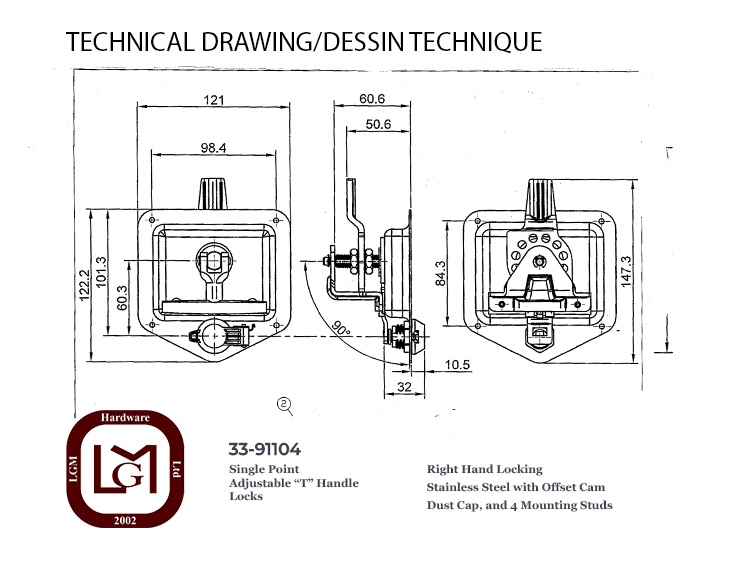

33 91104 Technical Drawing
Click photo to make Larger.

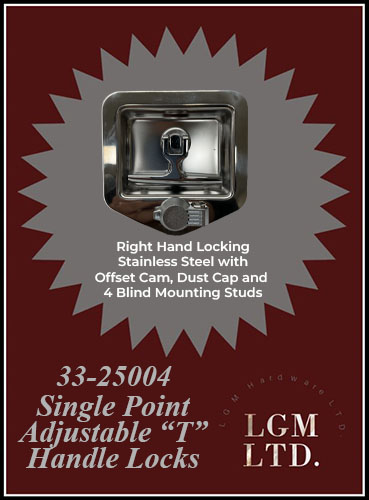

33-25004Right Hand
 Stainless Steel LockingWith Dust Cap and 4 Blind Mounting Studs

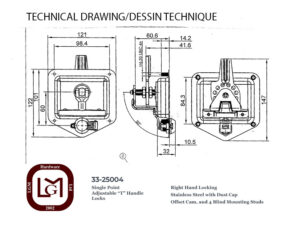

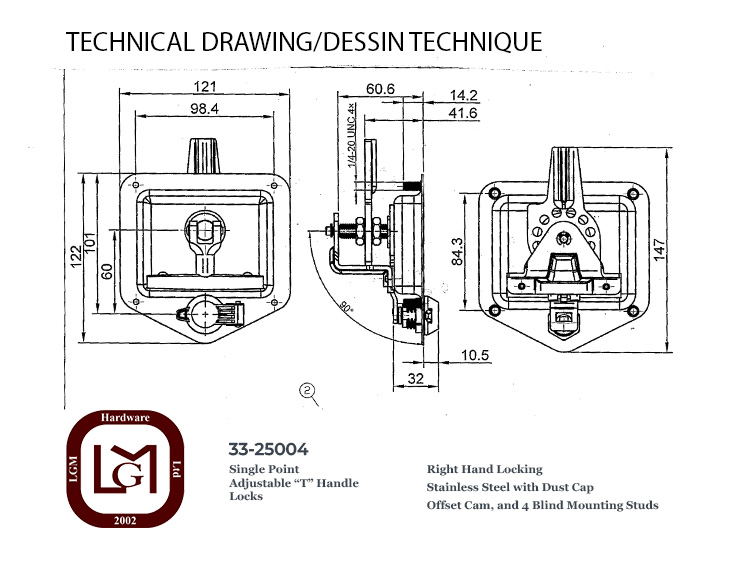

33 25004 Technical Drawing
Click photo to make Larger.

Accessories:

Product #Description:
66-805061/8" Foam Mounting Gasket
33-06003Replacement Chrome "T" Handle Only and Pin
34-01102Replacement Keys Only -
Please Specify Number CH 501 to CH 510
33-046025/16" x 34" zinc rods only - flat end
33-055045/16" x 48" long zinc rod
33-056025/16" x 34" long zinc bent rod with 1/4" hole

Replacement Cylinders:

Product #Description:Extra:
33-70102Key Number CH501Replacement Cylinders
33-70202Key Number CH502Replacement Cylinders
33-70302Key Number CH503Replacement Cylinders
33-70402Key Number CH504Replacement Cylinders
33-70502Key Number CH505Replacement Cylinders
33-70602Key Number CH506Replacement Cylinders
33-70702Key Number CH507Replacement Cylinders
33-70802Key Number CH508Replacement Cylinders
33-70902Key Number CH509Replacement Cylinders
33-71002Key Number CH510Replacement Cylinders
33-71602Key Number CH545Replacement Cylinders

Dust Caps:

Product #DescriptionExtra:Product Image:

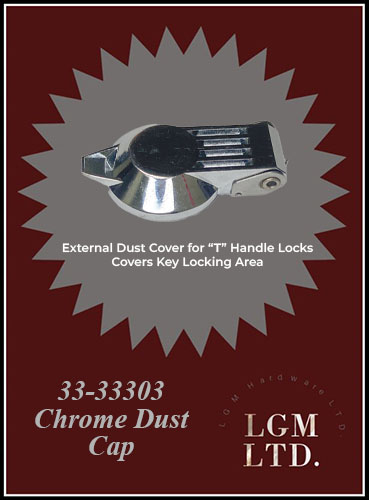

33-33303Chrome Dust CapExternal Dust Cover for "T" Handle Locks, Covers key Locking area
33 33303 Picture
Click photo to make Larger.
66-33306Rubber Dust CapExternal Dust Cover for "T" Handle Locks, Covers key Locking area

Additional information

Item #

33-04602, 33-04804, 33-05504, 33-05602, 33-06003, 33-08802, 33-25004, 33-33303, 33-60002, 33-70102, 33-70202, 33-70302, 33-70402, 33-70502, 33-70602, 33-70702, 33-70802, 33-70902, 33-71002, 33-71602, 33-91104, 34-01102, 66-33306, 66-80506
