Rotary Cab Lock and Handles

33 40000 33 40700 Picture Rotary Latches
33 66502 33 66702 Picture Cab Lock 2″W X 3 3/8″H (58)

See table below for details.

SKU: 33-28802, 33-28902, 44-91000 Categories: ,

Description

Product #Orientation:Descripton:Technical Drawing:
33-28802LH Cab lock with inside handle and striker
(Pictured)		 Cab lock with inside handle and striker

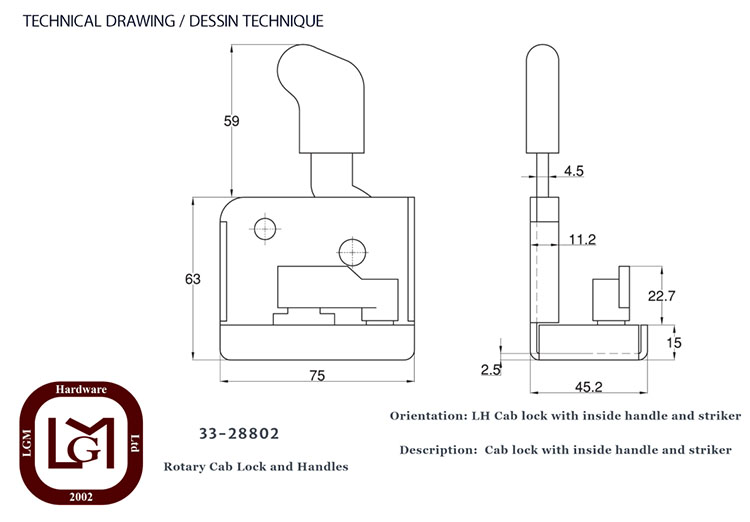

33 28802 Technical Drawing
Click photo to make Larger.

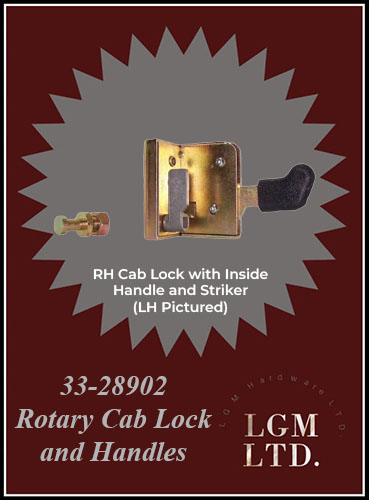

33-28902RH Cab lock with inside handle and striker

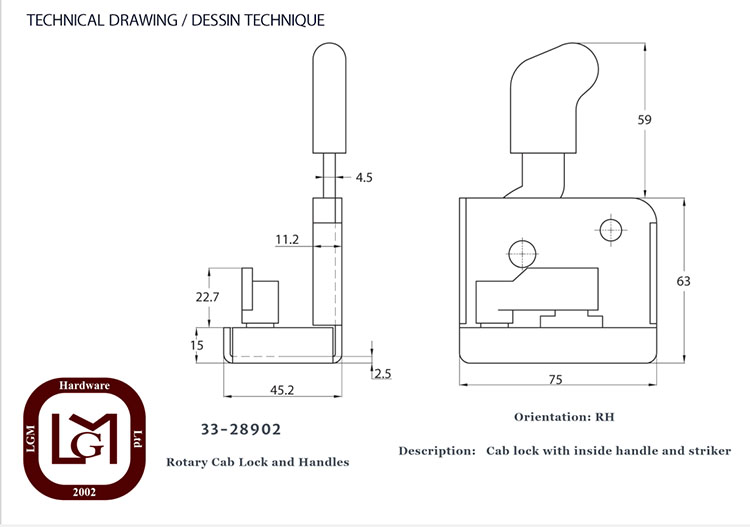

33 28902 Technical Drawing
Click photo to make Larger.

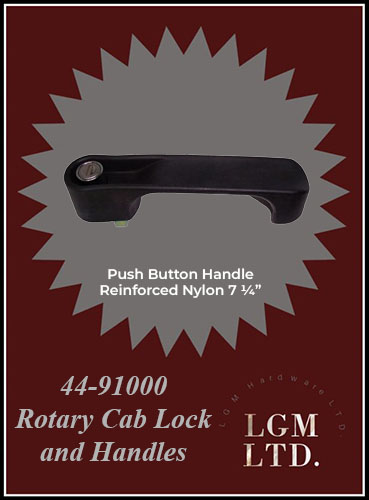

44-91000Push button handle - reinforced nylon 7 1/4"

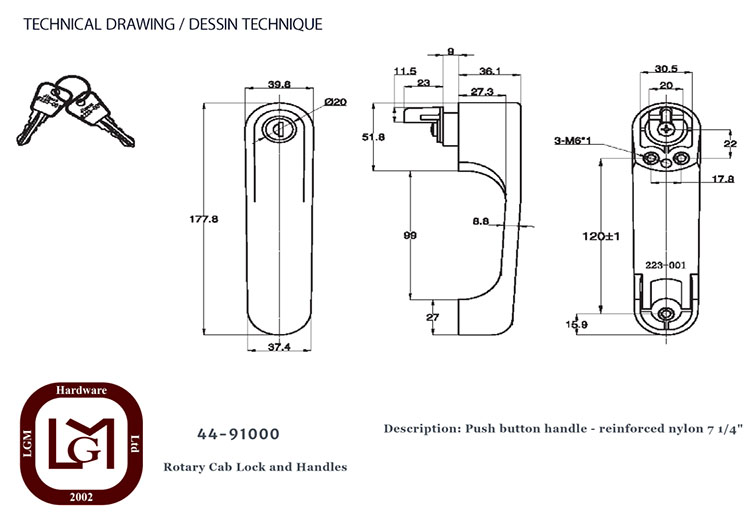

44 91000 Technical Drawing
Click photo to make Larger.

Additional information

Item #

33-28802, 33-28902, 44-91000
