Quick Disconnect – Male

See table below for details.

SKU: 57-64101, 57-64102, 57-64111, 57-64112, 57-64121, 57-64122, 57-64123 Categories: ,

Description

Product #Length (mm):Ring Diameter (mm):AWG:Color:Pack:Technical Drawing:
57-6410119.0mm2.8mm22-16Red100

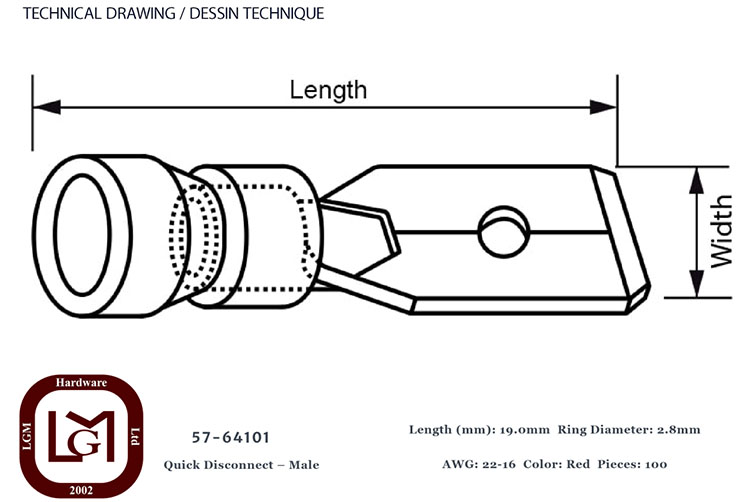

57 64101 Technical Drawing Update
Click photo to make Larger.
57-6410219.0mm2.8mm16-14Blue100

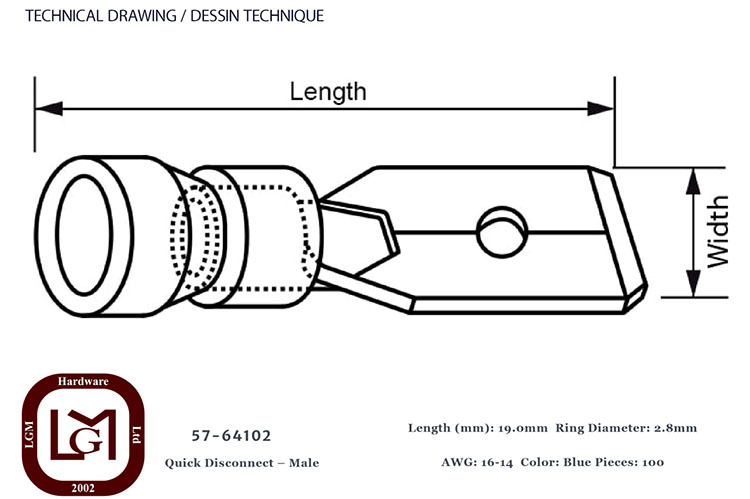

57 64102 Technical Drawing Update
Click photo to make Larger.
57-6411119.0mm4.8mm22-16Red100
57 64111 Technical Drawing Update
Click photo to make Larger.
57-6411219.5mm4.8mm16-14Blue100

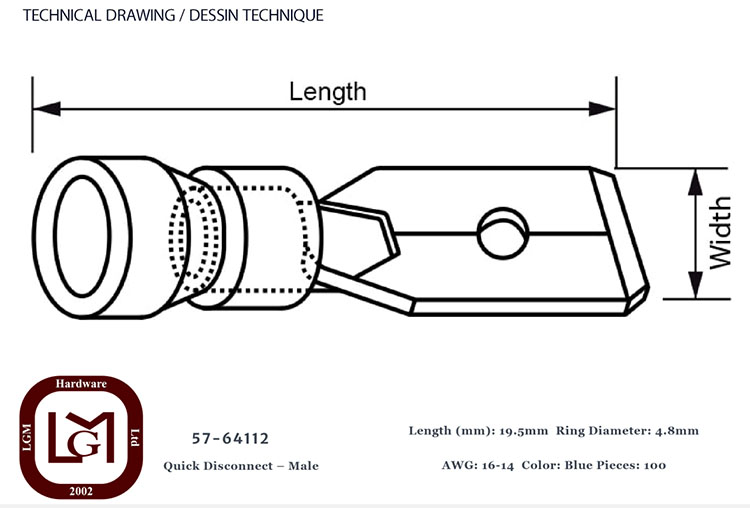

57 64112 Technical Drawing Update
Click photo to make Larger.
57-6412122.5mm6.3mm22-16Red100

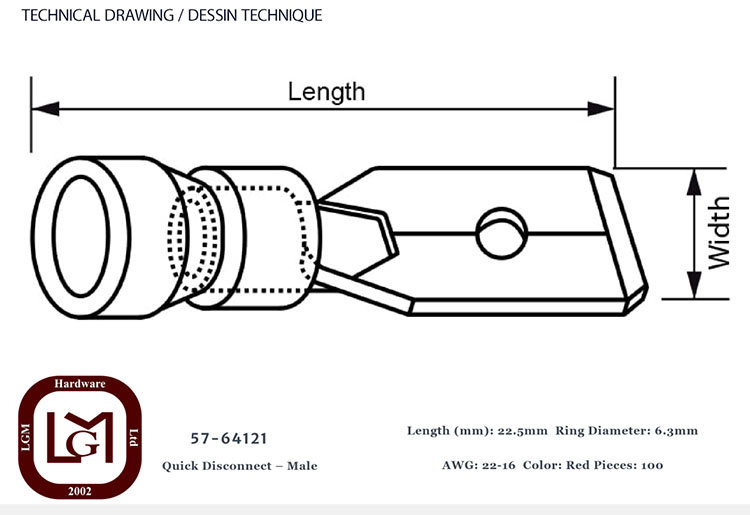

57 64121 Technical Drawing Update
Click photo to make Larger.
57-6412222.5mm6.3mm16-14Blue100

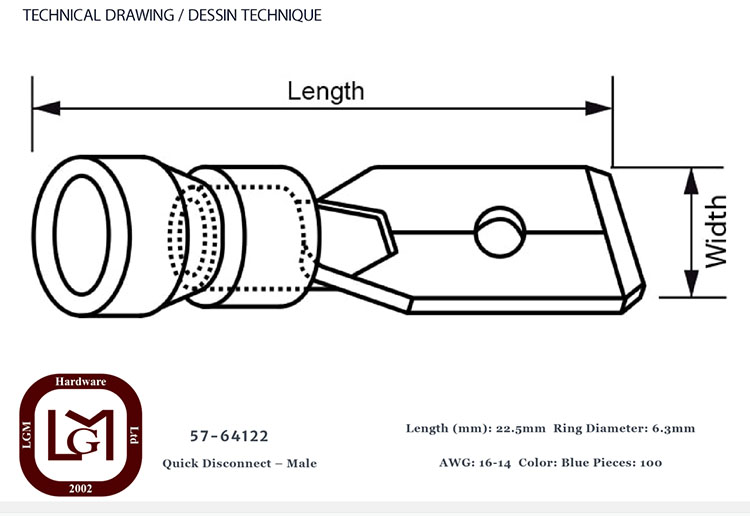

57 64122 Technical Drawing Update
Click photo to make Larger.
57-6412322.5mm6.3mm12-10Yellow100
57 64123 Technical Drawing Update
Click photo to make Larger.





Additional information

Item #

57-64101, 57-64102, 57-64111, 57-64112, 57-64121, 57-64122, 57-64123
