33 75602 Picture 2
33 75602 Picture 2

Fuel Tank Pre-Vent Adapter

33 77602 Picture Fuel Tank Pre-Vent Cap
33 71104 Picture Stainless Steel Fuel Pocket

See table and image below for details.

SKU: 33-75602, 33-75502, 33-77205 Categories: ,

Description

Product #Material:Color:Technical Drawing:
33-75602Cast IronBlack

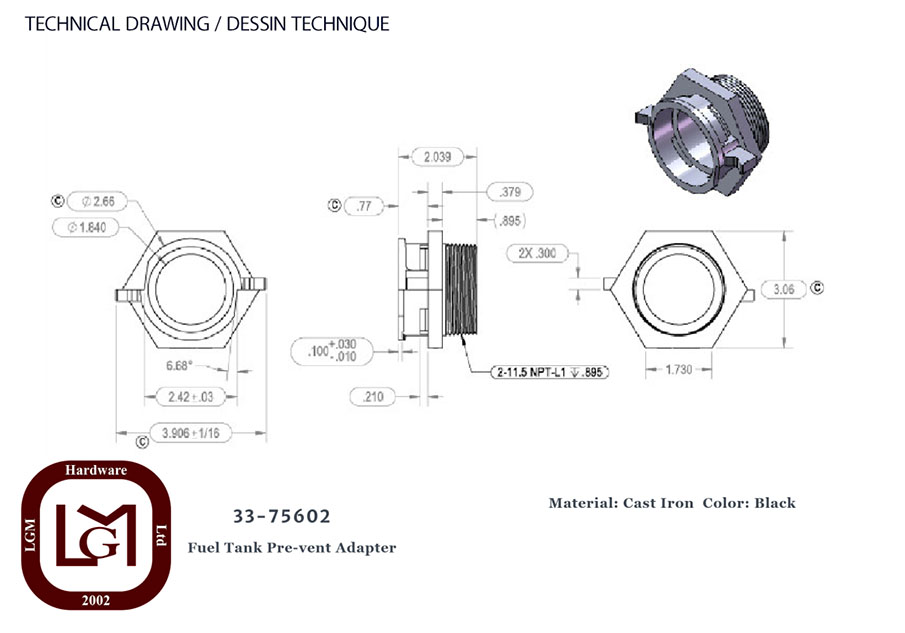

33 75602 Technical Drawing
Click to make photo Larger.
33-755022 Inch Steel weld on flangeZinc

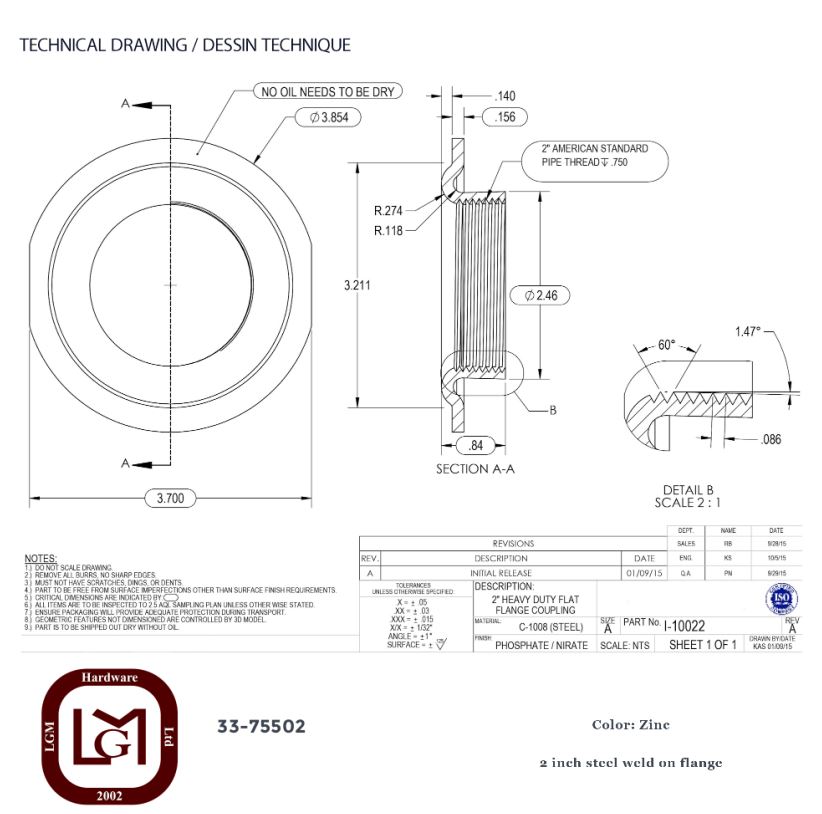

33 75502 Technical Drawing
Click to make photo Larger.
33-772052 inch Aluminum weld on flangeAluminum

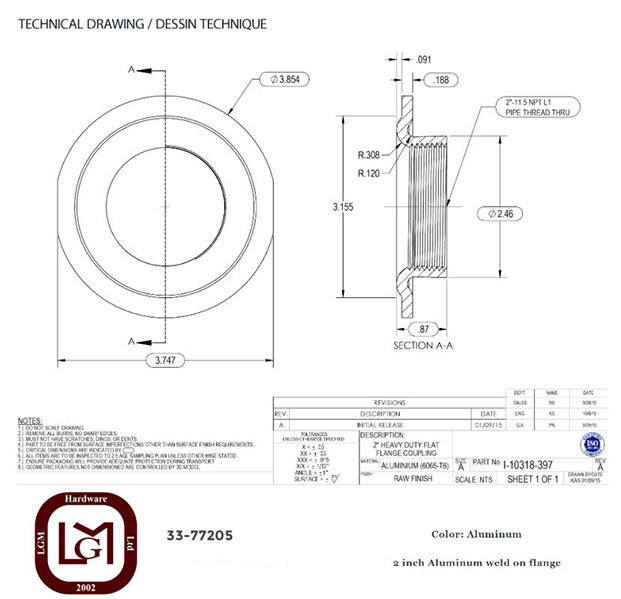

33 77205 Technical Drawing Resized
Click to make photo Larger.
